NEB 6500
design and efficiency
The NEB 6500 humidifier is the ideal solution for those looking for a modern and effective machine with reduced maintenance costs. The advanced control system allows you to adjust the capacity from 1.5 L/hour to 6.5 L/hour. The machine is equipped with a water container of only 0.055 L, about the size of a glass, which is automatically emptied when the machine stops: in this way the amount of water that remains inside the humidifier is minimized and consequently the chances of mold formations and dangerous bacteria are minimal. The machine can be completed with the resistance that allows it to operate up to -2°C. In fact, a typical application of this device is the storage cell of fruits and vegetables. The machine comes standard with all the brackets necessary for installation, both hanging and wall-mounted and can also work with demineralized water.
atomization capability6,5 L/h
absorbed power220 W
power supply voltage230V, 50Hz
Electronic control
optimized machine management and the ability to manually set the maximum humidification capacity from 6.5 L/h to 1.5 L/h for smaller environments.
Automatic water discharge
no residue of stagnant water inside when the machine stops.
Safe
designed to prevent as much as possible the formation of mold and bacteria inside.
ADIABATIC HUMIDIFIER CHARACTERISTICS
Neb series adiabatic humidifiers are environment appliances that pulverize water by centrifugal force. These are autonomous units that do not require auxiliary equipment such as high pressure pumps or compressed air. Finely pulverized water is fed into the environment where it evaporates rapidly humidifying and cooling it.
SIMPLICITY AND PERFORMANCE
These adiabatic humidifiers are designed to be easy to install, easy to control and clean, are equipped with an air filter that reduces the frequency of maintenance necessary to keep the efficiency of the device high. The appliances can be installed on the wall or hanging, all the necessary brackets are supplied as standard.
SAFETY AND EFFICIENCY
These devices effectively counteract the problem related to the formation of mold and bacteria in stagnant water: the water container, which fills during operation, is extremely small in size (about a glass) and is automatically emptied when the machine stops minimizing the amount of water that remains inside the device. In addition, the small size of the tray allows a very rapid replacement of sprayed water ensuring the entry into the environment of always fresh and clean water.
LOW COSTS
These adiabatic humidifiers are extremely simple, have low installation, operating and maintenance costs, ensure prolonged operation without the need for important interventions for a long period of time. They can work with both normal mains water and demineralized water.
Optional
Accessory to operate the NEB 6500 up to -2°C temperature; the resistance consumes 75W and is automatically deactivated by internal electronic control if the temperature rises above +4°C to avoid unnecessary energy waste.
Panel with electronic control for 1 NEB 6500, requires a separate humidity probe.

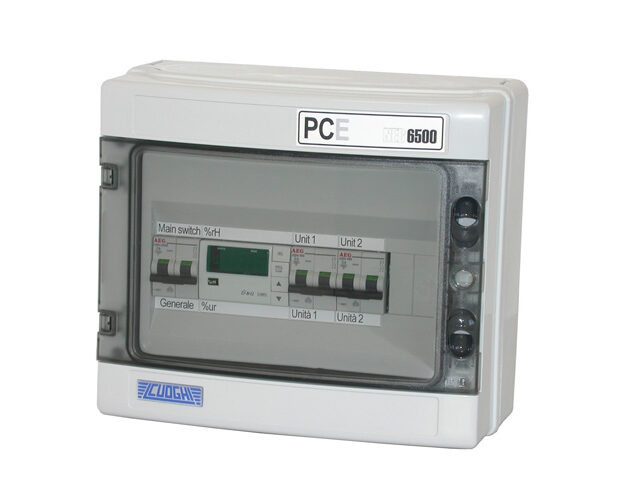

Electronic control panel to simultaneously control two NEB 6500 humidifiers in the same environment. It needs a separate moisture probe.
Electrical control panel for a NEB 6500. Requires an ON/OFF electric humidistat.
Electrical control panel for two NEB 6500s in the same environment. Requires an ON/OFF type electric humidistat.
 MINI NEB |  NEB 6500 |  NEB 6500 ATC |
|
| Tensione di alimentazione | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz |
| Capacità | 1,0 L/ora | 1,5 ... 6,5 L/ora | 1,0 ... 6,5 L/ora |
| Potenza Assorbita | 23 W | 220 W (290 W con la resistenza) | 230 W/unità (300 W con la resistenza) |
| Portata d'aria | 80 m³/ora | 280 m³/ora | 280 m³/ora ciascuna unità |
| Peso | 5 Kg | 17,6 Kg | n.d. |
